Mid-class production power

HT-450 Power Pack

456 CAT horsepower and 150 GPM of dedicated attachment hydraulics on your existing carrier — matched to mid-size excavators and cutterheads that don't need the full 575-class package.

What it is

Right-sized power, same Powertek build

The HT-450 is the HT-575's mid-class sibling: a self-contained CAT-powered hydraulic unit that mounts on a standard excavator and gives the work tool its own dedicated flow and pressure, independent of the carrier's hydraulics.

It's built in the same Concord shop, on the same 280 drive-pump architecture we've refined across two decades of power-pack manufacturing — and it pairs naturally with the CH-120 and CH-150-280 cutterheads.

Quoted per build — carrier, head, guarding, and options are matched to your application. Call and we'll spec it against the work you actually do.

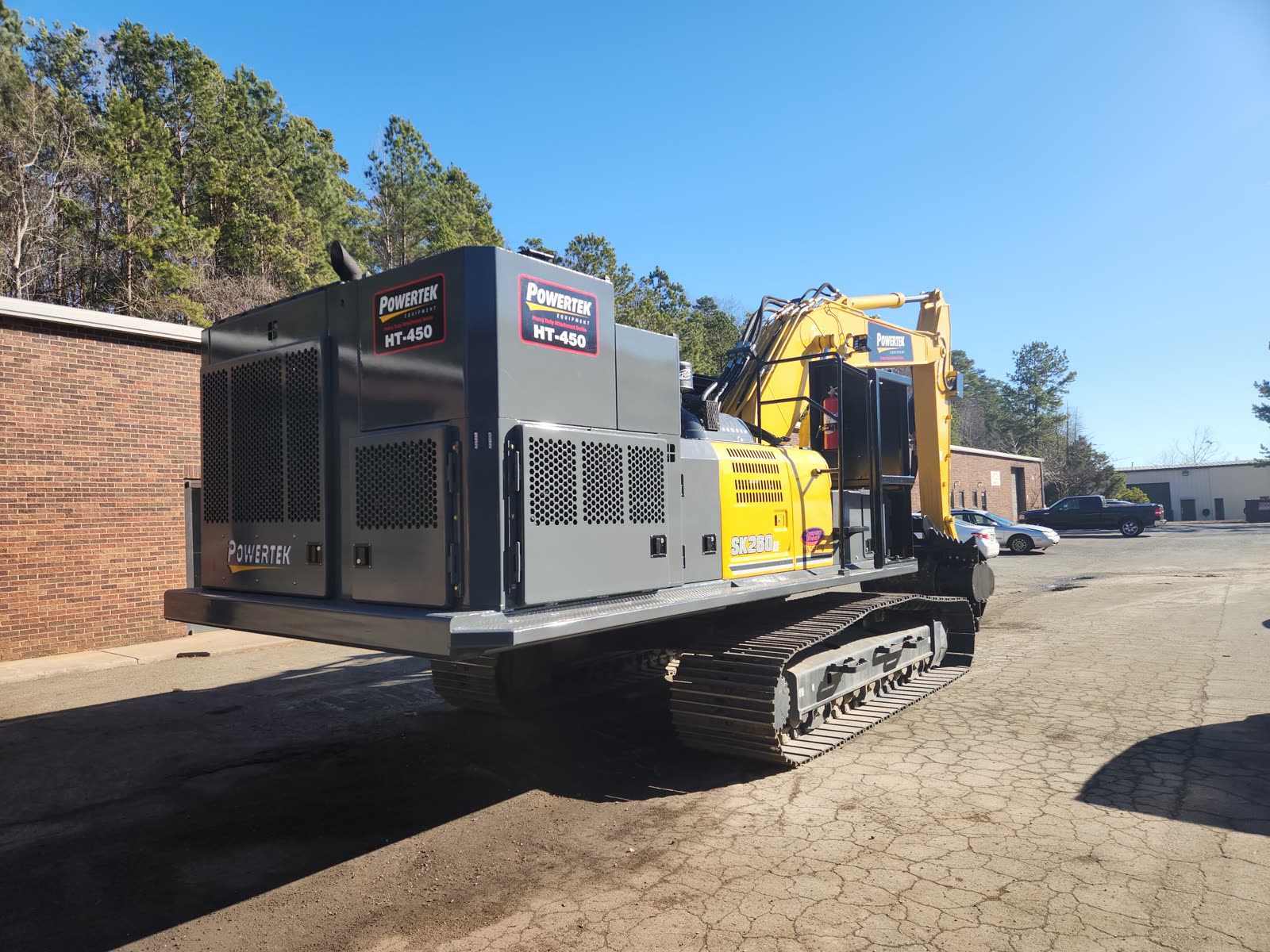

Powertek HT-450 Power Pack in full Powertek branding installed on a Kobelco SK260 excavator

HT-450 Power Pack on a Kobelco SK260 — built, installed, and delivered from Concord.

Specifications

HT-450 specs

  • EngineCAT C9.3B Tier 4 — 456 HP @ 2,000 RPM
  • Hydraulic flow150 GPM
  • Hydraulic pressure5,000 PSI
  • Onboard airEngine-driven, 120 PSI
  • Drive pump280cc (HPV280)
  • Fuel capacity200 gal
  • Hydraulic tank80 gal
  • MountingCustomer's existing excavator — installed by Powertek

Built the Powertek way

  • Dedicated cooling package sized for sustained mulching duty
  • Forestry guarding and catwalk protection available
  • Modern control package with Powertek Connect
  • Matched to CH-120 / CH-150 cutterheads
  • Built, installed, and supported from Concord, NC

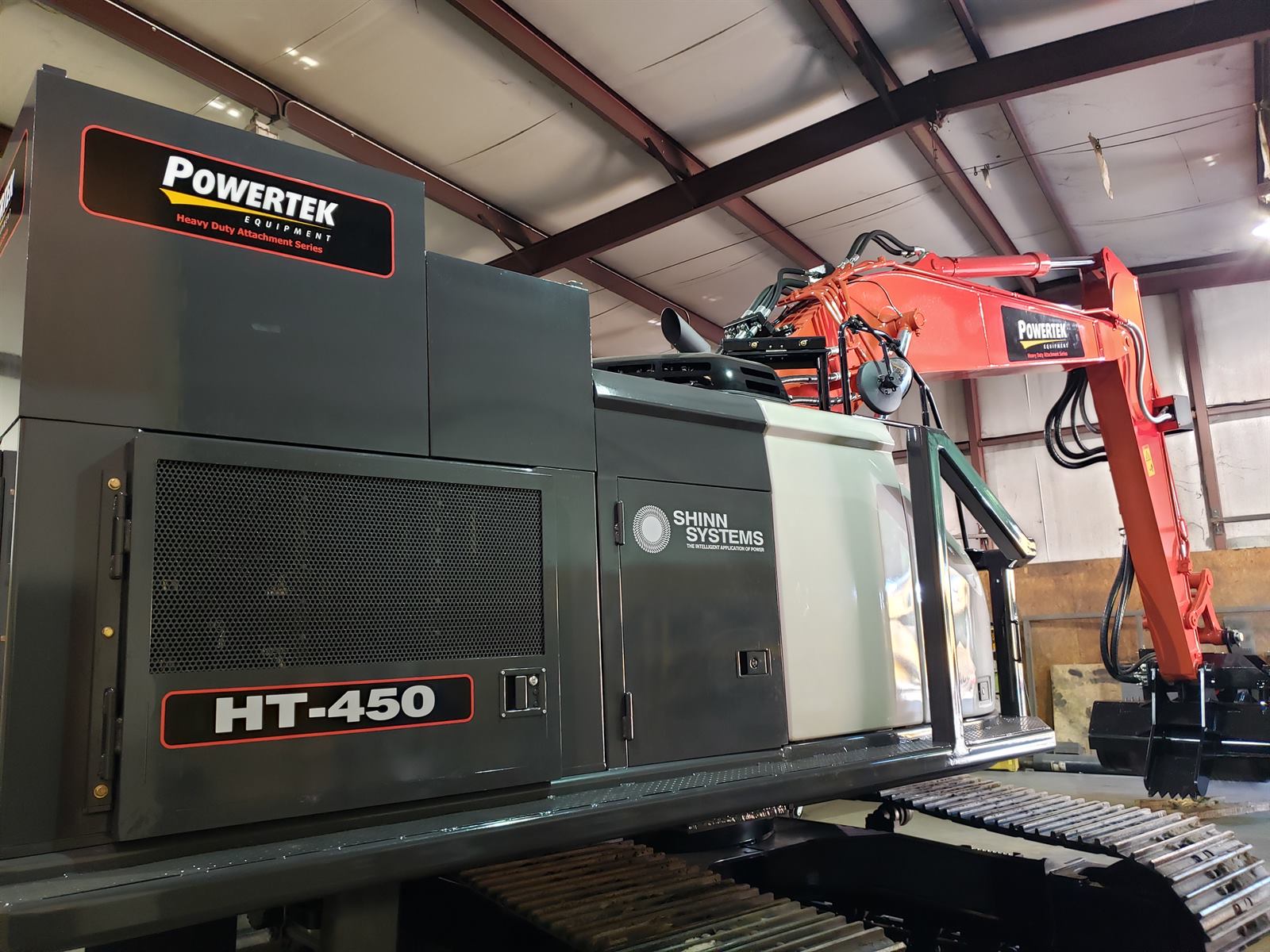

Powertek HT-450 power pack close-up in the shop

We've been building this platform for over a decade — including the units that carried the Shinn Systems name.

Need more?

Step up when the work demands it

Running a bigger head, heavier material, or longer production days? The HT-575 delivers 577 HP and 200 GPM on the same concept — and the XPE excavator builds the whole machine around the tool.
